Olto Technical Specifications
General
Vehicle Type
Class 2 e-bike designed specifically for urban bike lanes.
Top Speed
20 mph in bike lanes
33 mph off-road
Range
32 mi @ 20 mph
28 mi @ 25 mph
23 mi @ 30 mph
Passengers
2

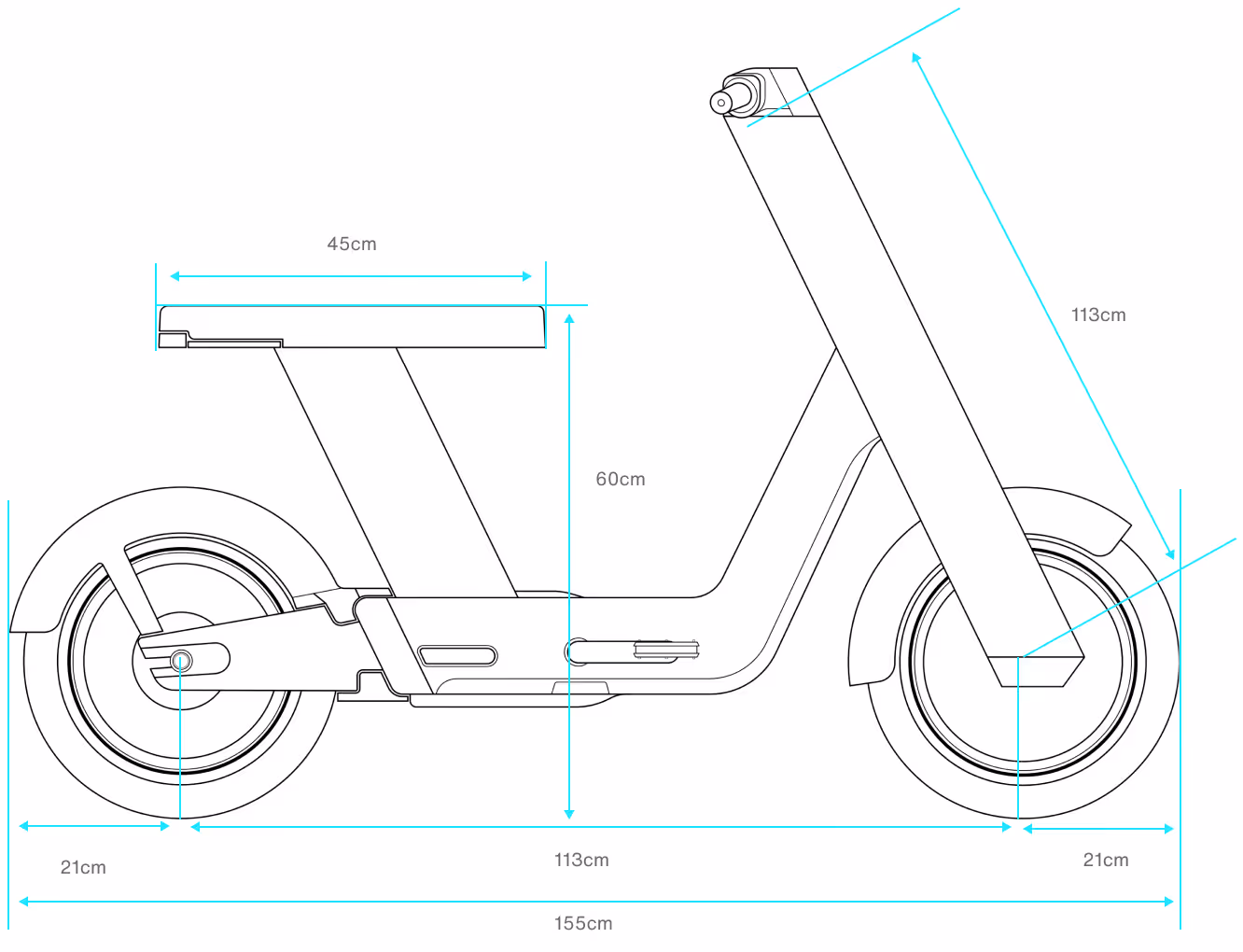

Vehicle Specs
Vehicle Weight w/ battery
Approx. 176 lb
Vehicle Weight w/o battery
Approx. 154 lb
Weight Capacity
353 lb
Overall Vehicle Length
66 in
Overall Vehicle Width
27 in
Overall Vehicle Height
42 in
Wheel Base
47 in
Seat Height
29 in
Seat Length
21 in
Ground Clearance
6 in
Rack and Trail
26°/ 4 in
Battery & Power System
Battery
1.2 kWh
Battery Voltage
Nominal voltage: 50 V
Battery Capacity
Nominal: 25 Ah Rated (Min): 23 Ah
Battery Weight
20 lb
Charge Time (basic 6a charger)
Approx. 5.5 hrs
Charge Time (fast 14a charger)
Approx. 3 hrs
Certifications
UL2271 Certified
Motor Type
Rear Hub Motor
Max Motor Power (Off Road)
2 kW
Nominal Motor Power (On Road)
750 W
Propulsion Type
Throttle or Pedal Assist
Throttle Type
Hall sensor
Controller Max Current
60 A
Technology
USB-C
NFC Unlock
BLE Proximity Unlock
Bluetooth Connectivity
Full Internet Connectivity
OTA Upgrade
Components
Front Brake Type and Disc size
Hydraulic Disc; Brake disc diameter: 7.87 in
Rear Brake Type and Disc Size
Hydraulic Disc; Brake disc diameter: 7.48 in
Front Suspension type and travel
Fork front suspension; Travel 2.36 in
Rear Suspension type and travel
Center rear suspension; Travel 21mm
Front Tire Size
90/80-12
Rear Tire Size
90/80-12
LED Headlight Lumen
High beam: 1120 lm | Low beam: 560 lm
LED Brake Light Lumen
Tail light brake: 261 lm
LED Tail Light Lumen
Position: 29 lm | Turning: 84 lm
Dashboard/Screen Type
TFT/4.3
